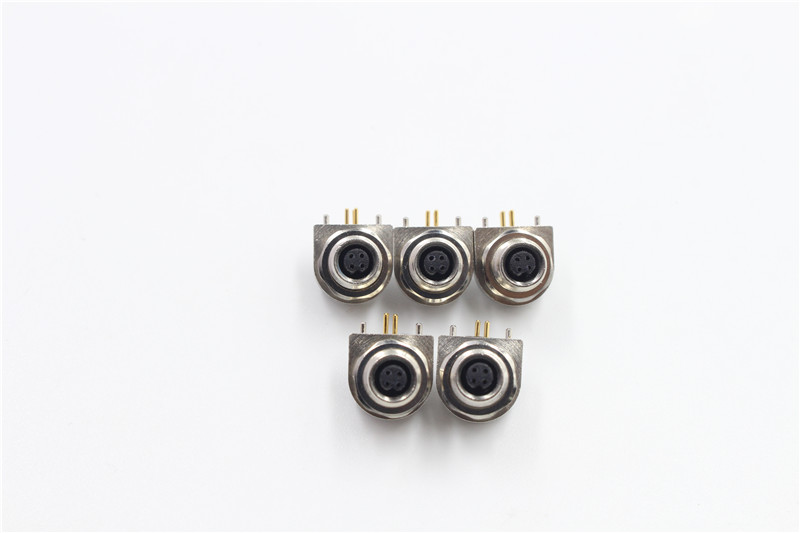

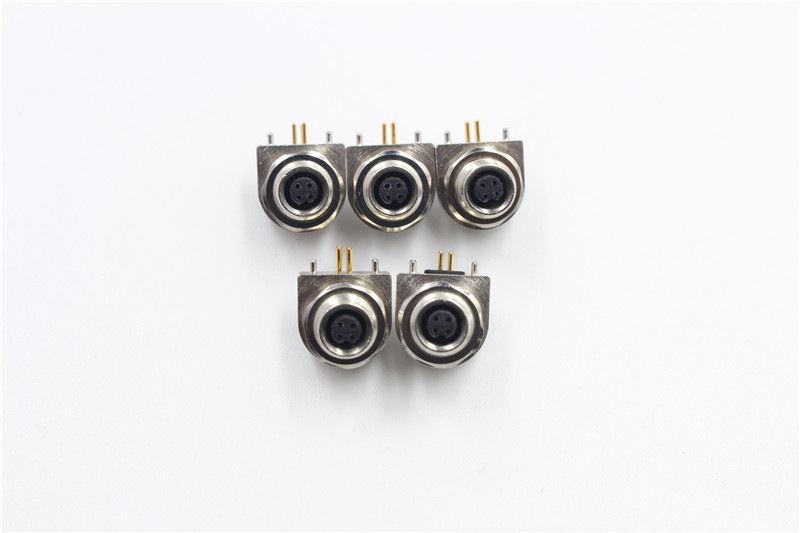

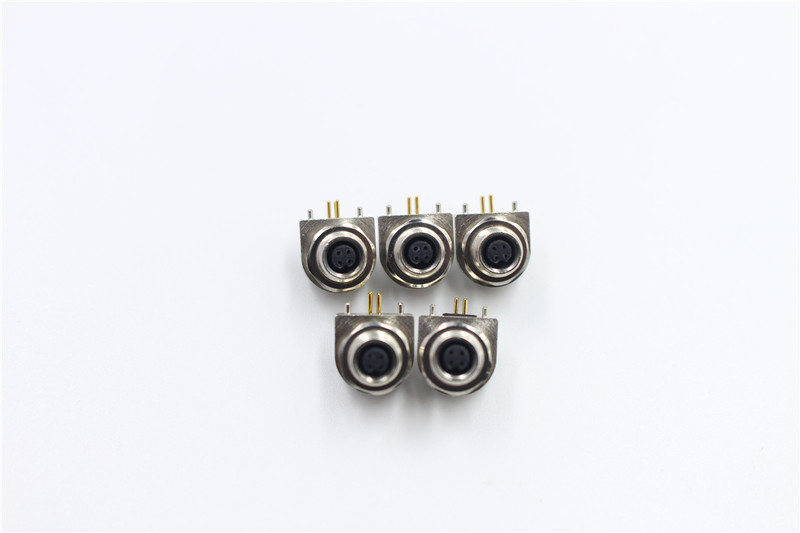

M5 female 4pin connector 90 degree DIP connector waterproof IP67

Ambient temperature: -20℃ ~ +105℃
Connector insert: TPU;PA
Connector contacts: Brass with gold plated
Connector over-molding: TPU
Coupling nut/screw: Brass with nickel plated
Seal/O-ring: FKM

Insulation resistance: ≥100MΩ . Contact resistance: ≤5mΩ .

Shielding： Unavailable  . IP rating: IP67 in locked condition

Download specifications
Click To Consult
Keywords: M5 female 4pin connector  M5 90 degree DIP connector  M5 connector waterproof IP67
