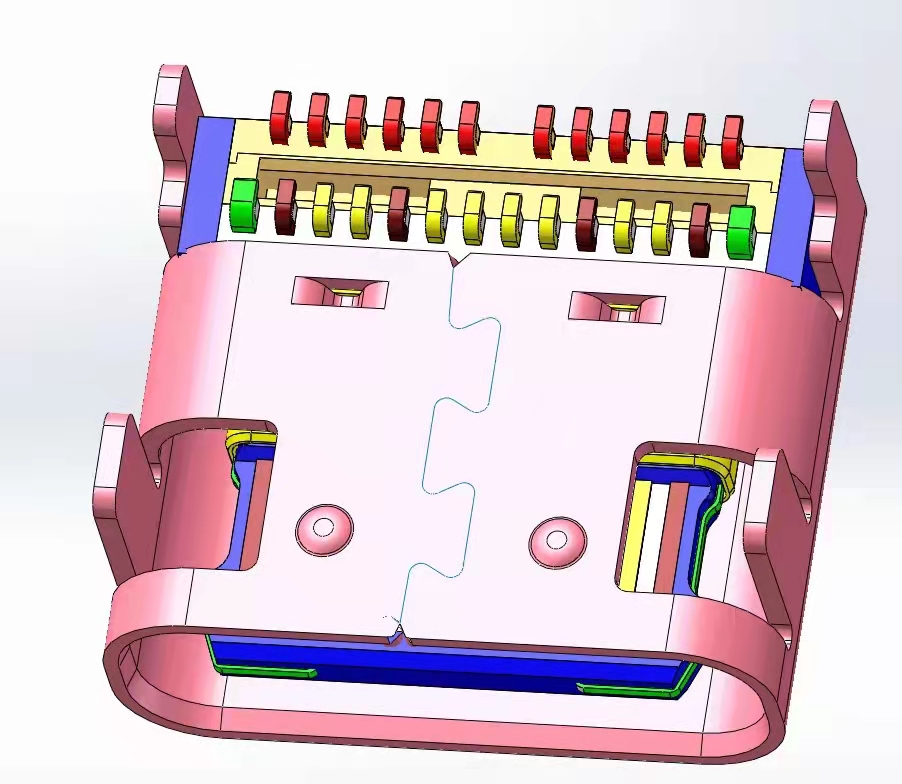

USB female connector YINO TYPE C 24pin socket connector

1. ELECTRICAL :
    1-1.CONTACT CURRENT RATING :
          5A(VBUS PIN 1.5A/PIN),
          5A(GND PIN 1.25A/PIN MAX),0.25A/PIN(OTHER PIN).
    1-2.INSULATION RESISTANCE :
         100 MEGAOHMS MIN. AT 250VDC
Download specifications
Click To Consult
Keywords: USB female connector  TYPE C 24pin connector
