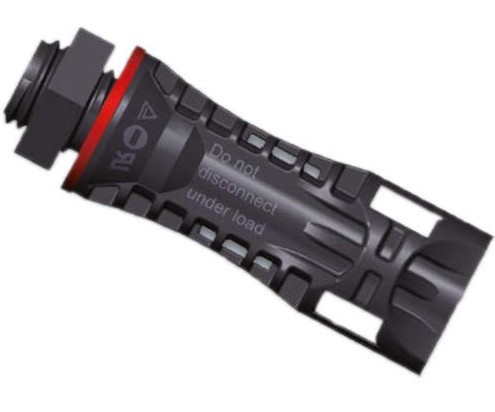

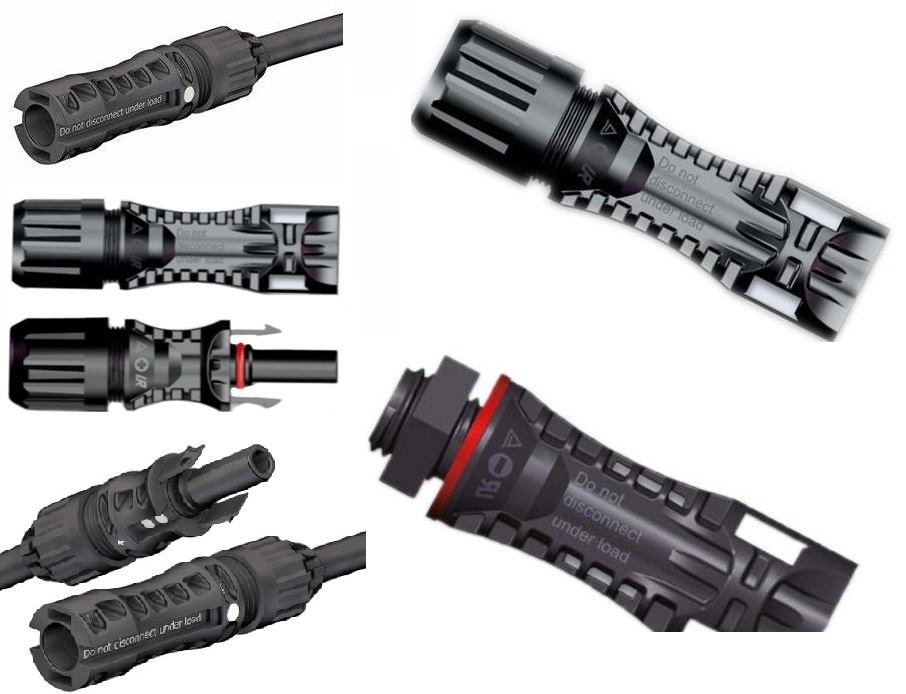

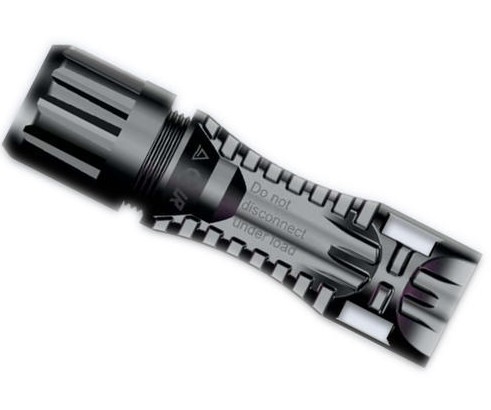

Connector system

￠4mm

Rated voltage

1500V DC(IEC)1)

1500V/1500 DC(UL)2)

Rated current

17A(1.5㎜2)

22A(2.5㎜2;14AWG)

30A(4㎜2;6㎜2;12AWG,10AWG)

Test voltage

8kV/8KV(50Hz,1min.)

Ambient temperature range

-40℃…+90℃(IEC)

-40℃…+75℃(UL)
