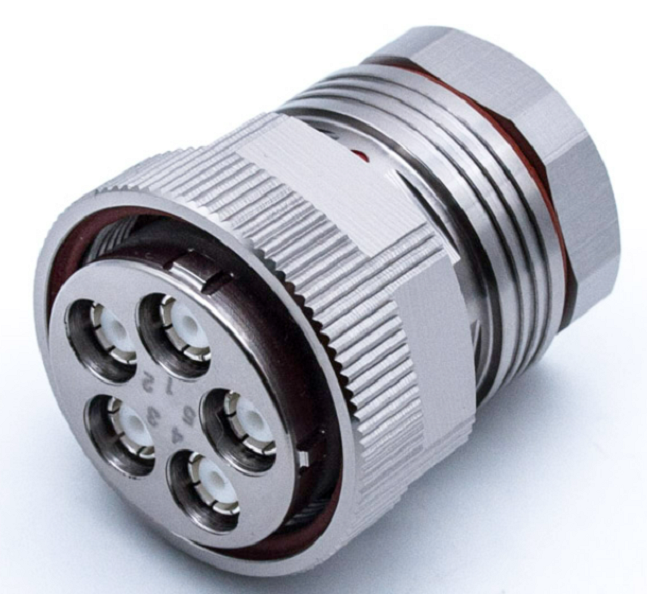

MQ5 PLUG coaxial FOR SF14-SOLDER TYPE (RF MQ SERIES CIRCULAR CONNECTOR NSS720H)

Electrical Characteristics
Frequency Range DC-6GHz
Impedance 50Ω
Frequency DC-2.7GHz 2.7-4.2GHz 4.2-6GHz
VSWR Plug ≤1.12 ≤1.15 ≤1.30
Jack ≤1.10 ≤1.15 ≤1.30
Insertion loss ≤0.05√fdB
Insulation Resistance ≥5000MΩ
Dielectric Withstanding Voltage ≥1000V AC
Isolation ≥90dB
Reference Standard Interface IEC63138-3
