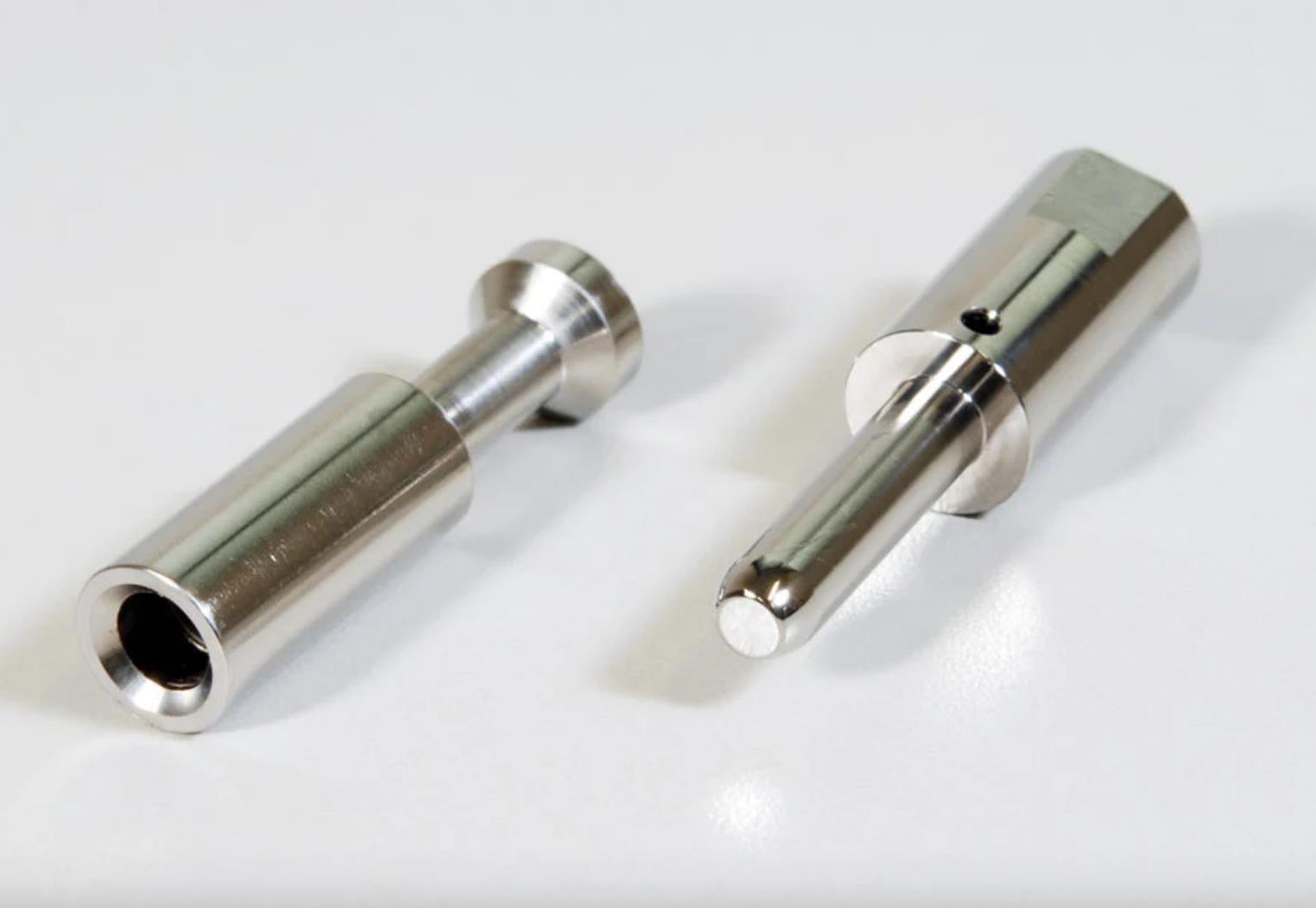

Solar pv connector copper contact terminals for 80A

Rated voltage 1500V DC per UL 6703 1000V DC per TÜV IEC62852
Rated current 25A ( 2.5mm2 /14AWG) 35A ( 4.0mm2/ 12AWG) 45A (6.0mm2/10AWG)
(per IEC 62852, 85°C) Rated current (per UL 6703)
Rated impulse voltage 12kV(1000V DC per TÜV)
Typical contact resistance ≤0.3mΩ
Contact material Cold Formed (CF) or Stamped & Formed (S&F)*1
Contact system options Tin-plated Copper Alloy
