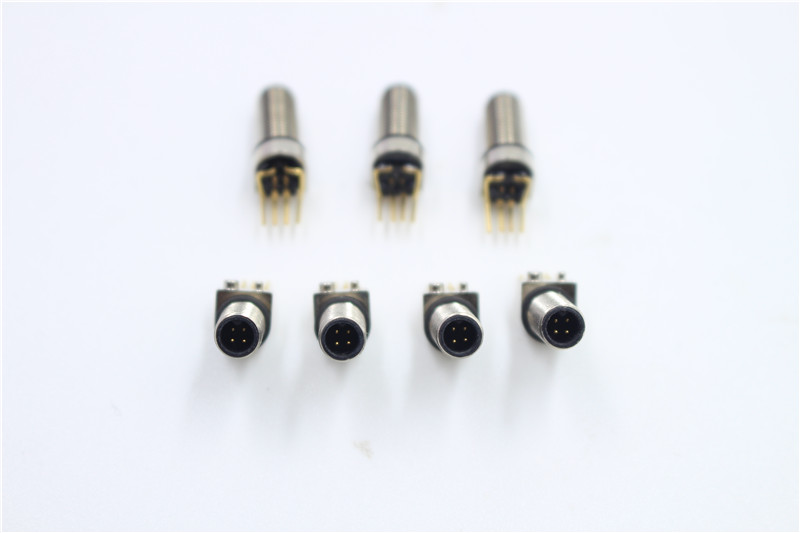

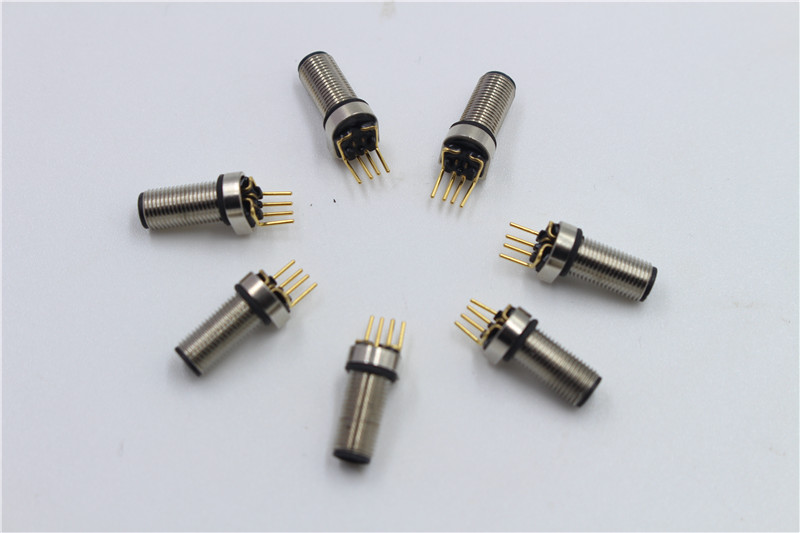

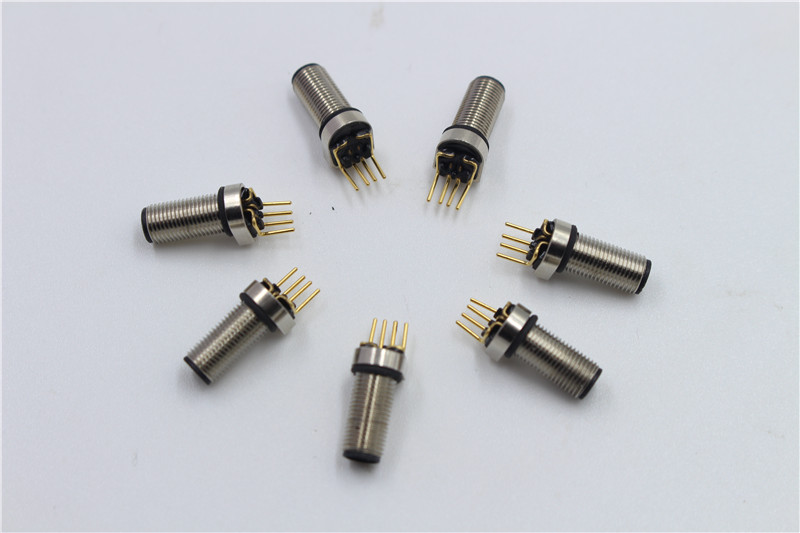

M5 SMT male 4pin connector

Standard: IEC 61076-2-105
Ambient temperature: -20℃ ~ +105℃
Connector insert: TPU;PA
Connector contacts: Brass with gold plated
Connector over-molding: TPU
Coupling nut/screw: Brass with nickel plated
Seal/O-ring: FKM

Insulation resistance: ≥100MΩ  Contact resistance: ≤5mΩ

 Shielding： Unavailable  IP rating: IP67 in locked condition

Download specifications
Click To Consult
Keywords: M5 connector  M5 4pin connector  M5 male SMT connector
