M5 connector

Your current location:Home - Industrial Circular Connector - M5 connector

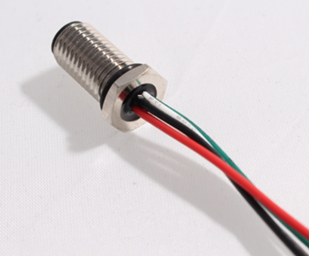

M5 3pin cable

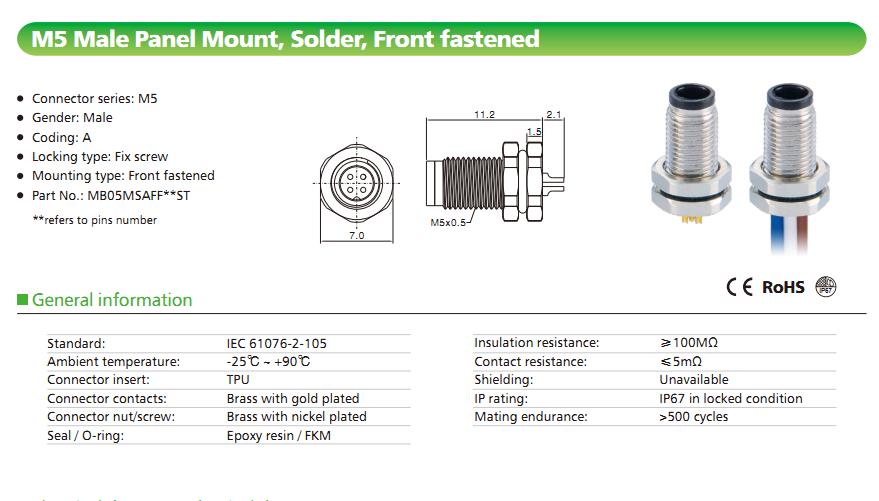

Standard: IEC 61076-2-105
Ambient temperature: -20 ~ +105

Connector insert: TPU;PA
Connector contacts: Brass with gold plated
Connector over-molding: TPU
Coupling nut/screw: Brass with nickel plated
Seal/O-ring: FKM
Insulation resistance: ≥100MΩ  Contact resistance: ≤5mΩ

For more products, please click :

http://www.ximeconn.com/


Download specifications
