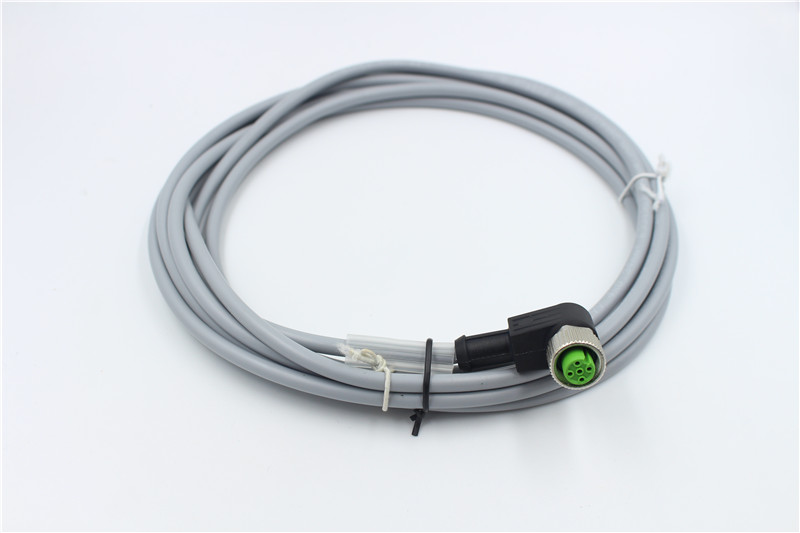

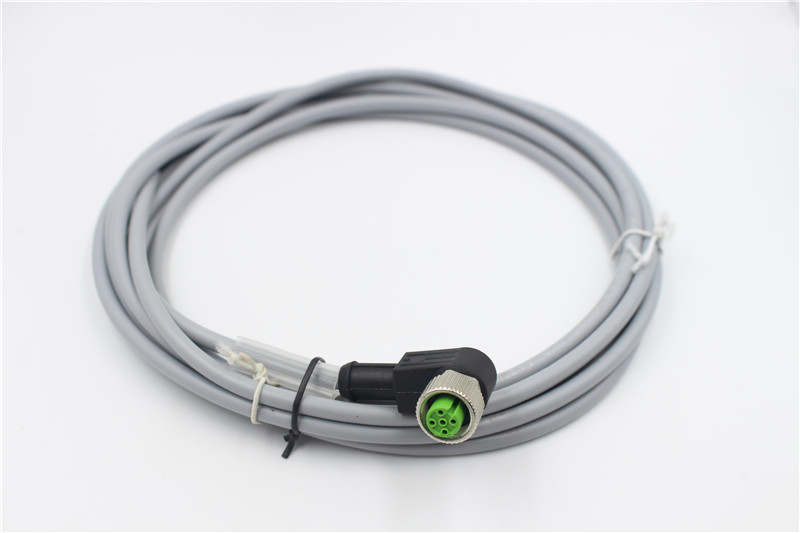

M12 connector angle 90 degrees cable

General information
Standard: IEC 61076-2-101
Ambient temperature: -20 ~ +105

Connector insert: TPU;PA
Connector contacts: Brass with gold plated
Connector over-molding: TPU
Coupling nut/screw: Brass with nickel plated
Seal/O-ring: FKM
Insulation resistance: ≥100MΩ
Contact resistance: ≤5mΩ  Shielding Unavailable
IP rating: IP67 in locked condition
