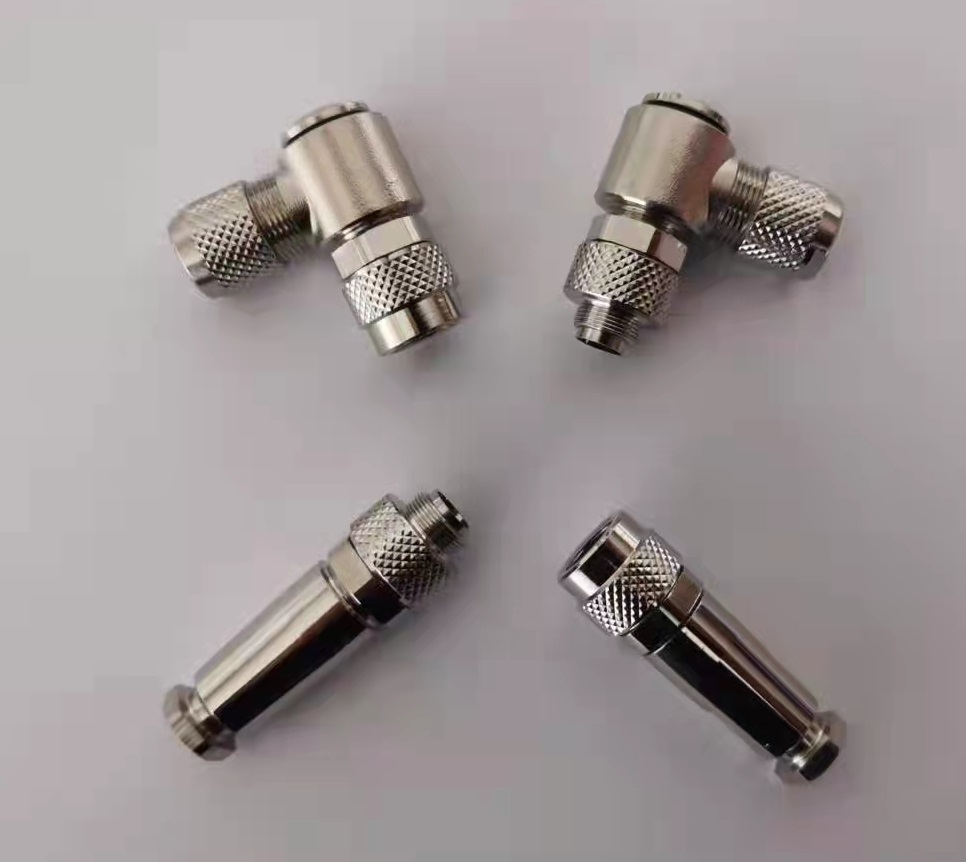

M9 metal 8pin 5pin connector shield IEC metal connector

Information：

Standard

IEC 61076-2-101 Ed 3.0

Connector body

PA66+GF or TPU

Connector Contacts

Brass with gold plated

Coupling Screw

Brass with nickel plated

Insulation Resistance

≥100MΩ

Waterproof Rating

IP67/IP68


Download specifications
Click To Consult
Keywords: M9 metal 8pin 5pin connector shield IEC metal connector
