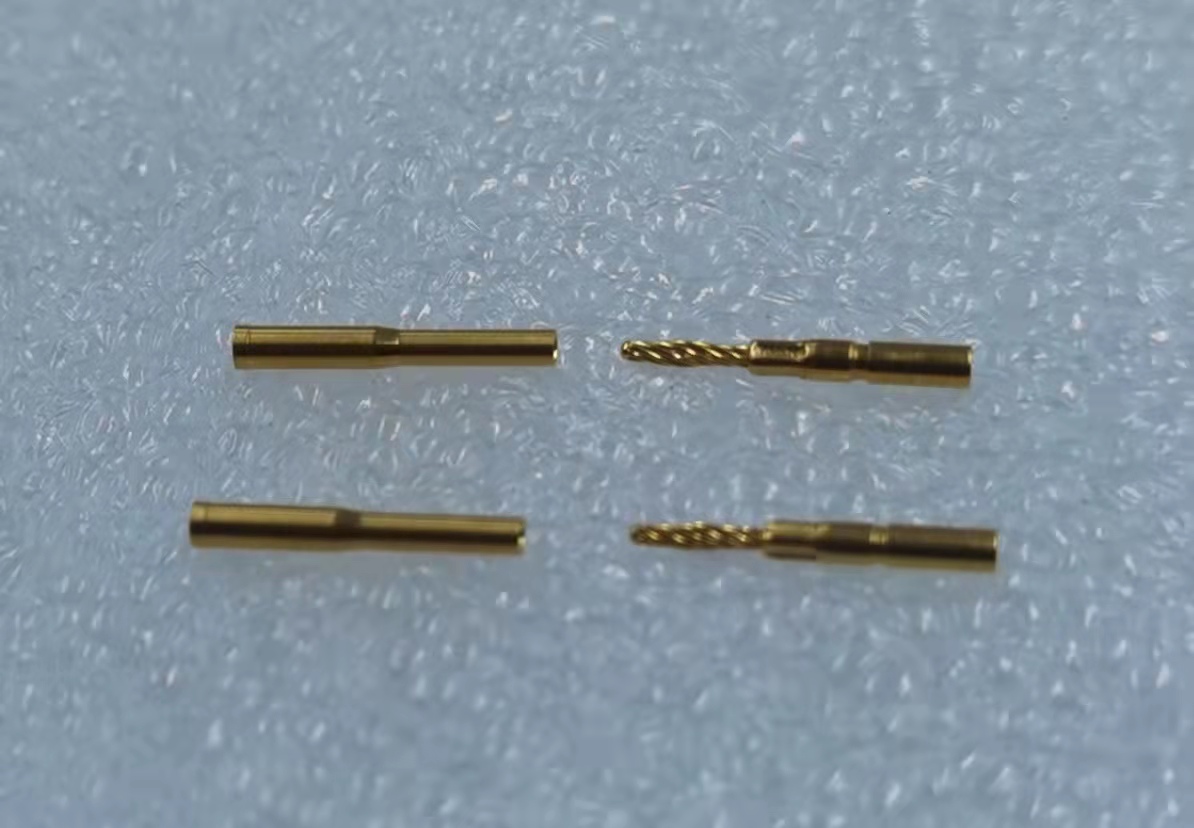

Industrial rectangular twist pin connector contact terminal male 0.92mm

Ambient temperature: - 65 ℃ ~ + 125 ℃

Vibration: 10Hz ~ 2000Hz 294m / s2
Random vibration: power spectral density 1.0g2/hz, root mean square value of total acceleration 41.7g
Impact: 1200m / s2
Rated current: 1A, 3A, 5A
Contact resistance: ≤ 10m Ω
Mechanical life: 1000 times
Thickness of gold plating layer: 0.8um, 1.27um or customized
Download specifications
Click To Consult
Keywords: twist pin connector contact terminal male 0.92mm and female
