Cdbf Rectangular connector twist pin 0.68mm terminal contact

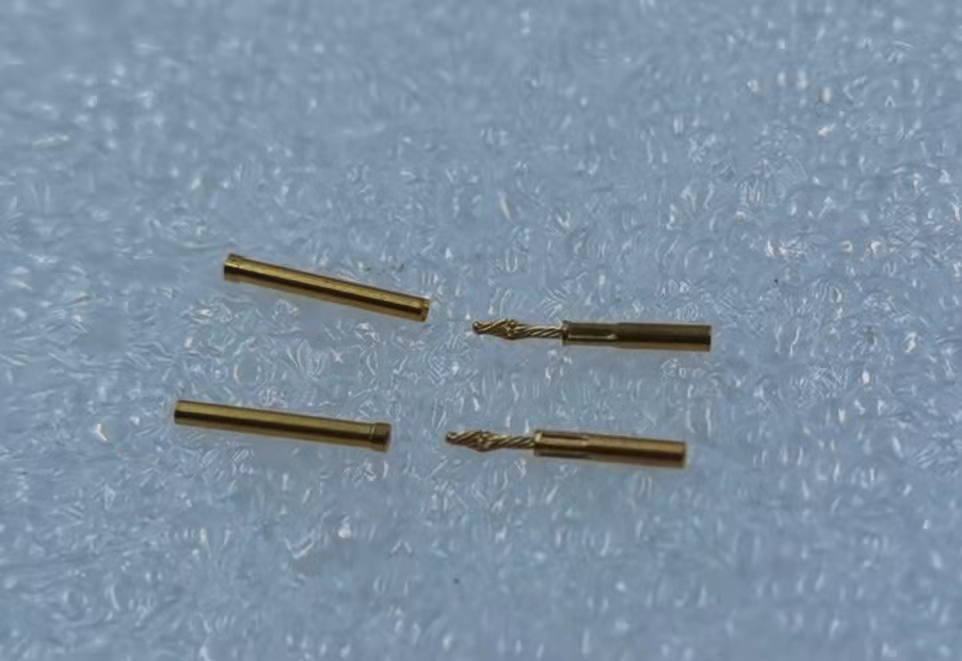

High contact density precision twisted elastic pin (twist pin)
The product performance meets the requirements of gjb246 (MIL83513, MIL32139)
Ambient temperature: - 65 ℃ ~ + 125 ℃
Vibration: 10Hz ~ 2000Hz 294m / s2
Random vibration: power spectral density 1.0g2/hz, root mean square value of total acceleration 41.7g
Impact: 1200m / s2
Rated current: 1A, 3A, 5A
Contact resistance: ≤ 10m Ω
Mechanical life: 1000 times
